Every SteamEco trap is sized from your actual pressure and condensate load — we calculate each nozzle individually rather than selling a generic catalogue size. All bodies are stainless steel, flanged to your standard, and install at any angle.

SteamEco SE-D fixed-flow venturi steam trap
SE-D series · fixed flow

For heat exchangers, evaporators and reboilers

The workhorse for process duties with high and stable condensate loads. The multi-orifice nozzle package is calculated for your exact duty and can be exchanged when the plant is expanded or re-rated.

  • Continuous condensate discharge — no temperature or pressure cycling in the process
  • Precisely calculated nozzle prevents outlet erosion
  • No moving parts: no scheduled shutdown for trap inspection
  • Unaffected by thermal shock and water hammer
  • Internal parts replaceable to match future capacity changes
SE-Z series · combined, low capacity

For saturated & superheated steam mains

A venturi element combined with a bimetallic element, built for steam distribution and tracing lines where live steam loss is the main cost driver. The wide working range tolerates pressure fluctuation across the whole header.

  • Zero steam leakage — measured, not assumed
  • On-line adjustment without removing the trap from the line
  • Bimetallic element works at low thermal stress, extending service life
  • Strainer element can be pulled and cleaned in minutes
  • Compact inline body for congested pipe racks
SteamEco SE-Z combined venturi steam trap
SteamEco SE-DT online-adjustable venturi steam trap
SE-DT series · online adjustable

For loads that change with the batch

Heating and holding kettles, batch cookers and any duty where condensate load swings widely. Capacity is adjusted on-line with a spindle that preserves the venturi flow characteristic across its travel.

  • Flow capacity adjustable on-line — no line break-in
  • Spindle geometry maintains venturi performance at every setting
  • Steam leakage rate below 0.1%
  • Rugged, one-piece construction — no routine maintenance
Integrated solution

Steam tracing manifold & condensate collection station

A prefabricated vertical module that combines the steam distribution header, condensate collection header, pre-insulated tracing bundles and a valved trap station in one forgeworks assembly in 304 stainless steel.

  • Modular standard design — no site fabrication
  • Fewer field welds, fewer potential leak points
  • Integrated trap valve: two isolating valves, filter-type trap, drain and check valves
  • Fitted with venturi + bimetallic combined traps — zero steam loss
  • Saves space and installation man-hours on pipe racks

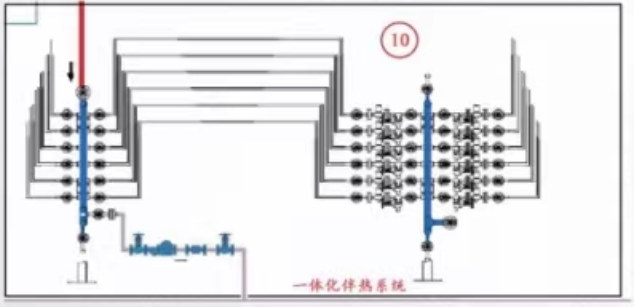

Integrated steam tracing manifold and condensate collection station
Selection guide

Which series fits your application?

Application Recommended series Why
Heat exchangers, evaporators, reboilers, air heaters SE-D High, stable condensate load; continuous discharge keeps heat transfer at its best
Saturated & superheated steam mains, headers SE-Z Zero leakage on lines where traps run light but constantly
Steam tracing bundles and jacketed piping SE-Z / tracing station Low capacity, wide range; prefabricated station cuts installation cost
Batch kettles, heating/holding vessels, sterilisers SE-DT Load swings handled by on-line capacity adjustment
High-pressure service up to 9.0 MPa, flows to 156 t/h SE-D / SE-DT Proven on a PTA main plant at 9.0 MPa and 156 t/h
Technical data

Typical specification envelope

Body material

304 / 316 stainless steel, forged or cast; flanged ends per EN / ASME / GB standard

Pressure range

Low pressure to 9.0 MPa — nozzle calculated per operating point

Capacity

From a few kg/h on tracing up to 156 t/h on PTA high-pressure duty

Steam leakage

≤ 0.1% (SE-DT); effectively zero on SE-D / SE-Z in normal operation

Installation

Any orientation — horizontal, vertical, inverted; no elevation head required

Service life

10–20 years body life; warranty 3–10 years depending on series and duty

Maintenance

No scheduled inspection or shutdown; SE-Z strainer cleaned in line

Tests before delivery

Hydrostatic shell test + hot steam operational test, per GB/T 12251 & 22654

Drop-in replacement

SteamEco traps keep the same function, flange dimensions and connection sizes as the mechanical traps they replace — float, inverted bucket or thermodynamic. No piping modification, no re-rating of supports, just bolt it in.

Send us your operating data — we'll size it for free

Steam pressure, condensate load and connection size are all we need to propose the right series and nozzle. Sizing calculation and quotation within 2 working days.

Request sizing & quotation
